Hexagonal Maker Bundle

Hexagonal Architecture

Symfony Maker Bundle for Hexagonal Architecture (Ports & Adapters)

✨ 19 maker commands | 💎 Pure Domain | 🎯 CQRS Pattern | 🏗️ Full Layer Coverage

Why Hexagonal Architecture?

Hexagonal architecture (aka Ports & Adapters) helps you build maintainable, testable applications by:

💎 Pure Domain Isolation - Business logic independent of frameworks
🎯 Dependency Control - Infrastructure depends on domain, not vice versa
⚡ Testing Speed - Unit tests run 1000x faster (no database needed)
🔄 Technology Freedom - Swap databases, frameworks without touching business logic
💰 Cost Predictability - Features cost consistent time, no technical debt tax

Read the complete guide →

⚡ Quick Start (2 minutes)

Step 1: Install

composer require ahmed-bhs/hexagonal-maker-bundle --dev

Step 2: Generate your first module

# Create a User Registration module
bin/console make:hexagonal:entity user/account User
bin/console make:hexagonal:repository user/account User
bin/console make:hexagonal:command user/account register --factory
bin/console make:hexagonal:controller user/account RegisterUser /users/register

Step 3: Configure Doctrine mapping

# config/packages/doctrine.yaml
doctrine:
    orm:
        mappings:
            UserAccount:
                type: yml
                dir: '%kernel.project_dir%/src/User/Account/Infrastructure/Persistence/Doctrine/Orm/Mapping'
                prefix: 'App\User\Account\Domain\Model'

Result: Complete hexagonal module with pure domain, CQRS commands, and web controllers! 🚀

Full installation guide →

Features

19 Maker Commands

Generate complete hexagonal architecture with a single command:

Layer	Maker	What it generates
Domain	`make:hexagonal:entity`	Pure PHP entities + YAML mapping
Domain	`make:hexagonal:value-object`	Immutable value objects
Domain	`make:hexagonal:exception`	Business exceptions
Application	`make:hexagonal:command`	CQRS commands + handlers
Application	`make:hexagonal:query`	CQRS queries + handlers + responses
Application	`make:hexagonal:repository`	Repository port + Doctrine adapter
UI	`make:hexagonal:controller`	Web controllers
UI	`make:hexagonal:form`	Symfony forms
UI	`make:hexagonal:cli-command`	Console commands
Tests	`make:hexagonal:use-case-test`	Use case tests
Rapid	`make:hexagonal:crud`	Complete CRUD module (20+ files)

See all 19 commands →

Example: Complete User Module

Step 1: Domain

Generate pure domain entities

bin/console make:hexagonal:entity user/account User
bin/console make:hexagonal:value-object user/account Email
bin/console make:hexagonal:exception user/account InvalidEmailException

Generated:

Domain/Model/User.php (pure PHP)
Domain/ValueObject/Email.php
Domain/Exception/InvalidEmailException.php

Step 2: Application

Generate use cases and commands

bin/console make:hexagonal:repository user/account User
bin/console make:hexagonal:command user/account register --factory
bin/console make:hexagonal:query user/account find-by-id

Generated:

Domain/Port/UserRepositoryInterface.php
Application/Register/RegisterCommand.php
Application/Register/RegisterCommandHandler.php
Application/FindById/FindByIdQuery.php

Step 3: Infrastructure

Auto-generated adapters

# Already generated with repository command!

Generated:

Infrastructure/Persistence/Doctrine/DoctrineUserRepository.php
Infrastructure/Persistence/Doctrine/Orm/Mapping/User.orm.yml

Step 4: UI

Generate controllers and forms

bin/console make:hexagonal:controller user/account RegisterUser /users/register
bin/console make:hexagonal:form user/account User

Generated:

UI/Http/Web/Controller/RegisterUserController.php
UI/Http/Web/Form/UserType.php

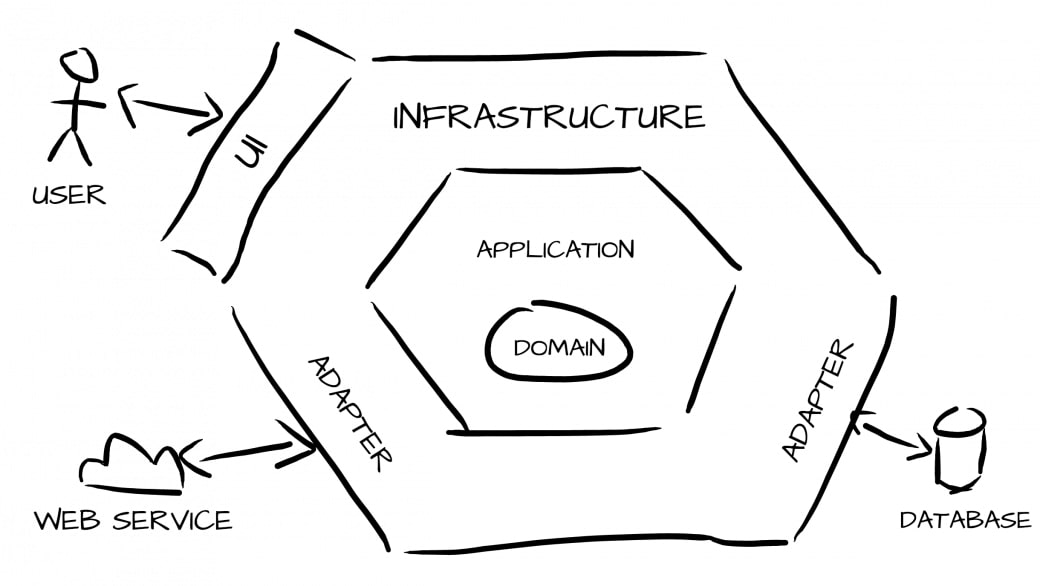

Architecture Layers

%%{init: {'theme':'base', 'themeVariables': { 'fontSize':'14px'}}}%%
graph TB
    subgraph UI["🎮 UI LAYER"]
        HTTP["HTTP Controllers"]
        CLI["CLI Commands"]
    end

    subgraph APP["⚙️ APPLICATION LAYER"]
        Commands["Commands & Queries"]
    end

    subgraph DOMAIN["💎 DOMAIN LAYER"]
        Entities["Entities & Value Objects"]
        Ports["Ports (Interfaces)"]
    end

    subgraph INFRA["🔌 INFRASTRUCTURE LAYER"]
        Adapters["Adapters (Implementations)"]
    end

    UI ==>|uses| APP
    APP ==>|depends on| DOMAIN
    INFRA -.->|implements| Ports

    style DOMAIN fill:#C8E6C9,stroke:#2E7D32,stroke-width:4px
    style APP fill:#B3E5FC,stroke:#0277BD,stroke-width:3px
    style INFRA fill:#F8BBD0,stroke:#C2185B,stroke-width:3px
    style UI fill:#E1BEE7,stroke:#6A1B9A,stroke-width:3px

Dependency Rule: All dependencies point inward. Domain has zero dependencies.

Architecture guide →

CRUD in 1 Command ⚡

Generate complete CRUD module with all layers:

bin/console make:hexagonal:crud blog/post Post --with-tests --with-id-vo

Generated (30+ files):

Entity + ValueObjects + Repository
5 Use Cases (Create, Update, Delete, Get, List)
5 Controllers + Form
All tests (Use Case + Controller)
Doctrine YAML mapping

CRUD examples →

Documentation

Core Guides

Guide	Description
Quick Start	Install and generate your first module in 2 minutes
Maker Commands	Complete reference for all 19 maker commands
Architecture Guide	Deep dive into hexagonal architecture patterns
Why Hexagonal	Business case and technical benefits
SOLID Principles	How hexagonal architecture enforces SOLID
Examples	Real-world examples and use cases

Advanced Topics 🆕

In-depth guides covering critical aspects of hexagonal architecture:

Guide	Description
Domain vs Application Logic	Decision guide: where to place your business logic
Request-Response Flow	Complete end-to-end flow with diagrams
Port Design Principles	How to design effective port interfaces
Primary vs Secondary Adapters	Understanding the two sides of the hexagon
CQRS: Cost-Benefit Analysis	When to use CQRS (and when to avoid it)
Dependency Injection Guide	Complete Symfony configuration
Factory Pattern Guide	Complete factory implementation
Error Handling Strategy	Exception handling and error management
Anti-Patterns & Pitfalls	Avoid common mistakes

Requirements

PHP 8.1+
Symfony 6.4+ or 7.x
Composer

Contributing

We welcome contributions! See our Contributing Guide.

License

MIT License - see LICENSE for details.

Created by Ahmed EBEN HASSINE
