Analyzer Reference Documentation

---

1. Overview

Doctrine Doctor implements 100 specialized analyzers organized into four categories that detect Doctrine ORM anti-patterns and performance issues.

1.1 Severity Classification

Severity	Impact	Examples
Critical	Security/data-loss/severe runtime risk	SQL injection, dangerous cascade
Warning	Important performance/integrity/config issues	N+1 patterns, missing indexes
Info	Optimization and maintainability recommendations	Naming and design improvements

---

2. Analyzer Taxonomy

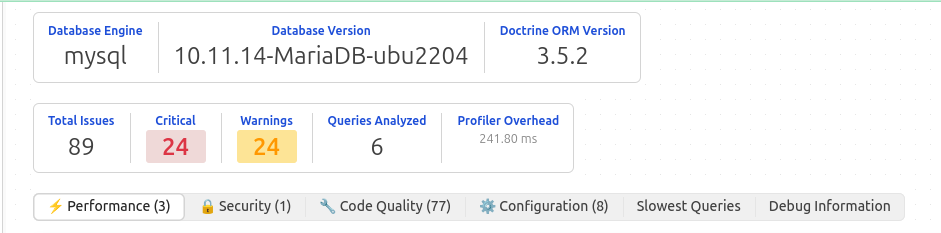

2.1 Distribution by Category

2.2 Detection Methods

• Runtime Analysis: Query pattern recognition and request context in the Symfony Web Profiler
• Static Analysis: Application source and Doctrine mapping checks in doctrine:doctor:analyze
• Database Audits: Live database schema and configuration checks, opt-in with --with-database

See Profiler and CI Checks to choose how to run these checks.

---

3. Performance Analyzers

3.1 Category Overview

Performance analyzers detect patterns that degrade application responsiveness, increase database load, or consume excessive system resources.

Total: 33 analyzers Average Impact: 10-1000x performance improvement when resolved

3.2 Key Performance Analyzers

3.2.1 NPlusOneAnalyzer

• Severity: Critical
• Purpose: Detects N+1 query problems (1 initial query + N lazy-loaded queries)
• Detection: Query signature matching and execution pattern analysis
• Impact: 90-99% query reduction when fixed

3.2.2 MissingIndexAnalyzer

• Severity: Critical
• Purpose: Identifies queries doing full table scans
• Detection: Database EXPLAIN plan analysis
• Impact: 10-1000x performance improvement

3.2.3 FlushInLoopAnalyzer

• Severity: Critical
• Purpose: Finds EntityManager::flush() calls inside loops
• Detection: Call stack trace analysis
• Impact: 10-100x improvement by batching operations

3.2.4 SlowQueryAnalyzer

• Severity: Warning
• Purpose: Flags queries exceeding execution time threshold
• Detection: Direct execution time measurement

3.2.5 HydrationAnalyzer

• Severity: Info
• Purpose: Detects inefficient result set hydration
• Impact: 50-80% memory reduction

3.2.6 CartesianProductAnalyzer

• Severity: Critical
• Purpose: Detects cartesian product risks caused by joining multiple collections
• Detection: Correlates multi-collection JOIN patterns with grouped N+1 collection behavior
• Impact: Prevents row explosion, duplicate hydration, memory spikes, and severe slowdowns
• Example: Joining multiple to-many associations in one query creates N x M result multiplication

Note: MissingIndexAnalyzerConfig, under src/Analyzer/, is intentionally absent from this catalog: it is a configuration object, not an analyzer.

---

3.3 Analyzer Summary Table

Analyzer ID	Detection Method	Typical Impact	Configuration
NPlusOneAnalyzer	Query signature matching	90-99% query reduction	threshold: 5
MissingIndexAnalyzer	EXPLAIN analysis	10-1000x speedup	slow_query_threshold: 50
SlowQueryAnalyzer	Execution time	Direct	threshold: 100 (ms)
HydrationAnalyzer	Result set size	50-80% memory reduction	row_threshold: 99
FlushInLoopAnalyzer	Trace analysis	10-100x	flush_count_threshold: 5
EagerLoadingAnalyzer	JOIN count	Query optimization	join_threshold: 4
LazyLoadingAnalyzer	Proxy initialization	Query reduction	threshold: 10
DTOHydrationAnalyzer	Hydration mode	Memory + performance	—
BulkOperationAnalyzer	Entity count	100-1000x	threshold: 20
BulkInsertAnalyzer	Single-row INSERTs into one table	Multi-row INSERT through DBAL; names the callbacks, listeners and generated ids it bypasses	threshold: 100
QueryCachingOpportunityAnalyzer	Cache statistics	50-90% reduction	—
EntityManagerClearAnalyzer	Memory usage	Memory leak prevention	batch_size_threshold: 50
JoinOptimizationAnalyzer	JOIN complexity	Query simplification	max_joins_recommended: 5, max_joins_critical: 8
CartesianProductAnalyzer	Multi-collection JOIN analysis	Prevent row explosion	n1_collection_threshold: 3
SetMaxResultsWithCollectionJoinAnalyzer	LIMIT + JOIN	Incorrect results	—
OrderByWithoutLimitAnalyzer	ORDER BY + full scan	Resource usage	—
FindAllAnalyzer	Unfiltered queries	Memory exhaustion	threshold: 99
YearFunctionOptimizationAnalyzer	Function in WHERE	Index usage	—
IneffectiveLikeAnalyzer	Leading wildcard	Full table scan	—
NPlusOneSqlAnalyzer	SQL-level N+1 detection	Query reduction	—
StructuralMissingIndexAnalyzer	WHERE columns vs declared indexes	Index coverage	—
DeepOffsetPaginationAnalyzer	Large OFFSET values	Scan cost grows with offset	—
PaginationWithoutOrderByAnalyzer	LIMIT without ORDER BY	Non-deterministic pages	—
OrderByNullableLeadingColumnAnalyzer	Nullable leading sort key	Rows skipped per platform	—
FunctionOnPredicateColumnAnalyzer	Function wrapping a WHERE column	Index not usable	—
ImplicitTypeConversionAnalyzer	Text column compared to a number or to an integer-bound DQL parameter (column types from Doctrine metadata)	Index not usable: per-row cast on MySQL/MariaDB, error on PostgreSQL	—
NotInSubqueryAnalyzer	NOT IN with a subquery	NULL semantics and cost	—
MissingTransactionOnBatchAnalyzer	Unwrapped batch writes	Per-statement commits	—
EagerLoadingMappingAnalyzer	fetch: 'EAGER' in mapping	Unrequested joins	—
GedmoExtensionPerformanceAnalyzer	Gedmo Loggable / Translatable	Extra writes and joins	—
GetReferenceAnalyzer	Full load where a reference suffices	Avoidable queries	—

Internal Parser Utilities (not directly user-facing): | SqlAggregationAnalyzer | Aggregation function analysis | Query optimization | Internal | | SqlConditionAnalyzer | WHERE/ON clause analysis | Index effectiveness | Internal | | SqlPerformanceAnalyzer | SQL pattern analysis | Performance insights | Internal |

---

4. Security Analyzers

4.1 Category Overview

Security analyzers detect vulnerabilities aligned with OWASP Top 10 and Doctrine-specific attack vectors.

Total: 7 analyzers OWASP Coverage: A02:2021 (Cryptographic Failures), A03:2021 (Injection), A05:2021 (Security Misconfiguration)

4.2 Key Security Analyzers

4.2.1 DQLInjectionAnalyzer

• Severity: Critical
• OWASP: A03:2021 Injection
• Purpose: Detects DQL injection vulnerabilities in string concatenation
• Detection: AST analysis of DQL string construction

4.2.2 SQLInjectionInRawQueriesAnalyzer

• Severity: Critical
• OWASP: A03:2021 Injection
• Purpose: Finds SQL injection in native queries
• Detection: Native query pattern analysis

4.2.3 SensitiveDataExposureAnalyzer

• Severity: Critical
• OWASP: A02:2021 Cryptographic Failures
• Purpose: Detects sensitive fields exposed in serialization
• Detection: Field pattern matching (password, token, secret, api_key)

4.2.4 InsecureRandomAnalyzer

• Severity: Warning
• Purpose: Identifies insecure random number generation
• Detection: Usage of rand() in security contexts

4.2.5 HardcodedDatabaseCredentialsAnalyzer

• Severity: Critical
• Purpose: Detects database credentials written directly into configuration instead of environment variables
• Detection: Hardcoded database URL in the connection configuration

4.2.6 OverprivilegedDatabaseUserAnalyzer

• Severity: Warning
• Purpose: Flags a database user holding more privileges than the application needs
• Detection: Connection user inspection, including the empty-user case

4.2.7 SQLInjectionInRawQueriesSourceAnalyzer

• Purpose: Finds unsafe raw SQL construction in application source code
• Runs in: doctrine:doctor:analyze (CI)
• Note: SQLInjectionInRawQueriesAnalyzer separately checks SQL captured from real requests in the profiler

---

5. Integrity Analyzers

5.1 Category Overview

Integrity analyzers detect code smells, anti-patterns, and violations of best practices that affect maintainability, readability, and adherence to Doctrine ORM conventions.

Total: 52 analyzers Focus: Type safety, relationship consistency, lifecycle management, naming conventions

5.2 Key Analyzers

5.2.1 Cascade analyzers

Description: Three dedicated analyzers, one per cascade rule, so each finding is reported once.

Detects:

1. CascadeAllAnalyzer: cascade: ['all'] usage (most dangerous)
2. CascadeRemoveOnIndependentEntityAnalyzer: cascade: ['remove'] on independent entities (potential data loss)
3. CascadePersistOnIndependentEntityAnalyzer: cascade: ['persist'] on independent entities (wrong aggregate boundaries)

Example Violation:

#[ORM\ManyToOne(targetEntity: Tag::class, cascade: ['remove'])] // Tag is independent!
private Tag $tag;

Issue: Deleting article would delete shared tag → data loss

---

5.2.2 CascadeConfigurationAnalyzer

Description: Validates consistency between ORM cascade operations and database foreign key constraints.

Violation Example:

/**
 * @ORM\OneToMany(targetEntity="Item", mappedBy="order", cascade={"remove"})
 */
private Collection $items;

// Database: ON DELETE SET NULL (mismatch!)

Issue: ORM expects cascade delete, database sets NULL → inconsistent state

---

5.2.3 BidirectionalConsistencyAnalyzer

Description: Ensures symmetric mapping in bidirectional relationships.

Violation:

class Order {
    /** @ORM\ManyToOne(targetEntity="Customer", inversedBy="orders") */
    private Customer $customer;
}

class Customer {
    /** @ORM\OneToMany(targetEntity="Order", mappedBy="wrongField") */
    //                                               ↑ Should be "customer"
    private Collection $orders;
}

---

5.3 Integrity Analyzer Summary

Analyzer	Focus Area	Violation Type	Impact
BidirectionalConsistencyAnalyzer	Relationship symmetry	Mapping error	ORM malfunction
CascadeConfigurationAnalyzer	Aggregate consistency	ORM/DB mismatch	Data corruption
CascadeAllAnalyzer	Explicit design	Over-automation	Unintended side effects
CascadePersistOnIndependentEntityAnalyzer	Aggregate boundaries	Wrong cascade scope	Data integrity
CascadeRemoveOnIndependentEntityAnalyzer	Entity independence	Improper deletion	Data loss
OrphanRemovalWithoutCascadeRemoveAnalyzer	Lifecycle management	Configuration inconsistency	Memory leak
MissingOrphanRemovalOnCompositionAnalyzer	Composition pattern	Missing cleanup	Orphaned records
OnDeleteCascadeMismatchAnalyzer	Layer consistency	ORM vs DB conflict	Undefined behavior
ForeignKeyMappingAnalyzer	Referential integrity	Primitive FK exposure	Architecture violation
TransactionBoundaryAnalyzer	ACID compliance	Transaction scope	Data inconsistency
EntityStateConsistencyAnalyzer	UnitOfWork pattern	State management	Sync issues
FinalEntityAnalyzer	Proxy compatibility	Non-final entities	Proxy failures
EmbeddableMutabilityAnalyzer	Value object	Mutable embeddables	Side effects
EmbeddableWithoutValueObjectAnalyzer	Value object pattern	Missing VO semantics	Design smell
MissingEmbeddableOpportunityAnalyzer	Cohesion	Scattered value objects	Maintainability
DecimalPrecisionAnalyzer	Type system	Precision loss	Financial errors
FloatForMoneyAnalyzer	Type system	Floating-point rounding	Calculation errors
FloatInMoneyEmbeddableAnalyzer	Value objects	Incorrect money handling	Financial bugs
PropertyTypeMismatchAnalyzer	Type safety	PHP↔DB type mismatch	Runtime errors
ColumnTypeAnalyzer	Column definitions	Wrong type usage	Data loss
CollectionInitializationAnalyzer	Object lifecycle	Uninitialized collections	Null pointer exceptions
TimestampableTraitAnalyzer	Trait conventions	Mutable or nullable timestamps	Unreliable audit trail
BlameableTraitAnalyzer	Trait conventions	Mutable or public author fields	Unreliable audit trail
SoftDeleteableTraitAnalyzer	Trait conventions	Mutable deletion timestamp	Unreliable soft deletes
PrimaryKeyStrategyAnalyzer	ID generation	Inefficient strategy	Performance issues
QueryBuilderBestPracticesAnalyzer	Code quality	Bad QueryBuilder patterns	Maintainability
EntityManagerInEntityAnalyzer	Architecture	Dependency injection	Architecture violation
TypeHintMismatchAnalyzer	Type safety	Type inconsistency	Runtime errors
NamingConventionAnalyzer	Code standards	Naming violations	Readability issues
NullComparisonAnalyzer	SQL semantics	= NULL instead of IS NULL	Silently empty results
DivisionByZeroAnalyzer	Expression safety	Unguarded division	Runtime error
CompositeKeyComplexityAnalyzer	Identifier design	Composite primary key	Join and mapping complexity
JoinColumnNonPrimaryKeyAnalyzer	Referential integrity	Join column targets a non-primary key	Fragile association
JoinTypeConsistencyAnalyzer	Query semantics	Mixed JOIN types	Inconsistent result sets
OneToOneInverseSideAnalyzer	Association mapping	Inverse side of a OneToOne	Extra query per load
ManyToManyWithExtraColumnsAnalyzer	Relationship modelling	Join table carries extra columns	Should be an entity
MappedSuperclassAsTargetEntityAnalyzer	Association mapping	Association targets a mapped superclass	Unsupported by Doctrine
MappedSuperclassOneToManyAnalyzer	Association mapping	OneToMany on a mapped superclass	Unsupported by Doctrine
DuplicatePrivateFieldInHierarchyAnalyzer	Inheritance	Same private field redeclared in a subclass	Shadowed state
InheritanceTypeOnNonRootEntityAnalyzer	Inheritance	InheritanceType declared off the root	Ignored by Doctrine
ClassTableInheritanceDepthAnalyzer	Class Table Inheritance	Deep hierarchy	One JOIN per level
ClassTableInheritanceThinSubclassAnalyzer	Class Table Inheritance	Subclass adds almost no fields	JOIN cost for little data
SingleTableInheritanceSparseTableAnalyzer	Single Table Inheritance	Mostly-empty columns	Wasted storage
SingleTableInheritanceNullableColumnAnalyzer	Single Table Inheritance	Non-nullable subclass column	Inserts fail for siblings
PartialObjectAnalyzer	Hydration	Full entity loaded for a few fields	Unnecessary data transfer
FlushInEventListenerAnalyzer	Lifecycle	flush() inside a lifecycle callback	Nested unit of work
MissingVersionFieldForConcurrencyAnalyzer	Concurrency	No #[ORM\Version] field	Lost updates
DenormalizedAggregateWithoutLockingAnalyzer	Concurrency	Denormalized aggregate without locking	Drifting totals
UniqueEntityWithoutDatabaseIndexAnalyzer	Constraints	#[UniqueEntity] with no UNIQUE index	Duplicates under concurrency
DiscriminatorColumnAnalyzer (length)	Inheritance mapping	Column too short for map	Unloadable rows
DiscriminatorColumnAnalyzer (index)	Single Table Inheritance	Unindexed discriminator	Full table scans
NullablePrimaryKeyAnalyzer	Identifier mapping	Nullable primary key	Deprecated since ORM 3.6
StringDefaultExpressionAnalyzer	Column defaults	Raw SQL string default	Deprecated since ORM 3.6

---

6. Configuration Analyzers

6.1 Category Overview

Configuration analyzers inspect the Doctrine and database settings the application runs with, rather than the entities or the queries themselves.

Total: 8 analyzers

6.2 Key Configuration Analyzers

6.2.1 TimeZoneAnalyzer

• Purpose: Detects timezone handling issues in datetime fields
• Recommendation: Use DateTimeImmutable with UTC timezone

6.2.2 CharsetAnalyzer

• Purpose: Detects charset issues (recommends UTF8MB4)
• Recommendation: Standardize on utf8mb4 to avoid truncation and multi-byte character loss

6.2.3 CollationAnalyzer

• Purpose: Validates collation settings for proper sorting and comparisons
• Detection Notes:
  • MySQL/MariaDB: detects utf8mb4_general_ci vs utf8mb4_unicode_ci mismatches
  • MySQL/MariaDB: detects view columns whose collation differs from the connection collation. CREATE VIEW freezes the session collation into the literals of its definition, so comparing such a column against a literal raises error 1267 (Illegal mix of collations) — both operands share the same coercibility and MySQL cannot arbitrate. Only same-character-set differences are reported, since MySQL converts implicitly across character sets
  • PostgreSQL: detects "C" collation issues, libc vs ICU differences, FK collation mismatches
• Recommendation: Use consistent, platform-appropriate collations across related tables/columns. For views, either recreate them from a connection using the application collation, or pin the literals with an explicit COLLATE so the definition no longer depends on the creating session

6.2.4 StrictModeAnalyzer

• Purpose: Ensures MySQL strict mode is enabled
• Recommendation: Enable strict mode to fail fast on invalid/truncated data instead of silent coercion

6.2.5 InnoDBEngineAnalyzer

• Purpose: Validates InnoDB storage engine usage
• Recommendation: Prefer InnoDB for transactions, row-level locking, and foreign key support

6.2.6 DoctrineCacheAnalyzer

• Severity: Critical / Warning
• Purpose: Detects suboptimal cache configuration — ArrayCache for metadata, query or result caching reparses and recompiles on every request
• Note: Reads the running configuration and only applies in the prod environment

6.2.7 LazyGhostObjectsDisabledAnalyzer

• Severity: Info
• Purpose: Detects enable_native_lazy_objects explicitly disabled, which falls back to generated proxy classes; silent from DoctrineBundle 3.1, where native lazy objects are always on

6.2.8 ConnectionPoolingAnalyzer

• Purpose: Reviews connection pool settings and reports when max_connections is unsuited to the workload

6.3 Configuration Summary

Focus Area	Analyzers	Key Recommendations
Timezone	TimeZoneAnalyzer	Use UTC + DateTimeImmutable
Gedmo Traits	3 analyzers	Proper trait configuration
Database Setup	4 analyzers	UTF8MB4 charset + strict mode + InnoDB

---

7. Configuration

7.1 Basic Configuration

doctrine_doctor:
    enabled: true
    profiler:
        show_in_toolbar: true
        show_debug_info: false

7.2 Analyzer Configuration

doctrine_doctor:
    analyzers:
        n_plus_one:
            enabled: true
            threshold: 5
        slow_query:
            enabled: true
            threshold: 100  # milliseconds
        missing_index:
            enabled: true
            slow_query_threshold: 50

7.3 Enabling / Disabling Individual Analyzers

doctrine_doctor:
    analyzers:
        n_plus_one:
            enabled: true
        dql_injection:
            enabled: true
        strict_mode:
            enabled: true

8. Extensibility

8.1 Custom Analyzers

Create custom analyzers by implementing AnalyzerInterface for request-dependent query analysis, StaticAnalyzerInterface for source or mapping checks, or DatabaseAuditAnalyzerInterface for live database audits. MetadataAnalyzerInterface remains available for mapping checks and extends StaticAnalyzerInterface:

// Query-based analyzer
use AhmedBhs\DoctrineDoctor\Analyzer\AnalyzerInterface;

final class CustomQueryAnalyzer implements AnalyzerInterface
{
    public function analyze(QueryDataCollection $queries): IssueCollection
    {
        // Detection logic based on captured SQL queries
    }
}

// Metadata-based analyzer
use AhmedBhs\DoctrineDoctor\Analyzer\Concern\MetadataAnalyzerTrait;
use AhmedBhs\DoctrineDoctor\Analyzer\MetadataAnalyzerInterface;

final class CustomMetadataAnalyzer implements MetadataAnalyzerInterface
{
    use MetadataAnalyzerTrait;

    public function analyzeMetadata(): IssueCollection
    {
        // Detection logic based on Doctrine metadata or database connection
    }
}

8.2 Registration

services:
    App\Analyzer\CustomAnalyzer:
        tags:
            - { name: 'doctrine_doctor.analyzer' }

---

← Back to Main Documentation

Configuration →
